Hey there! As a supplier of PS Box Mould, I often get asked about the tolerance of PS Box Mould. So, I thought I'd write this blog to share some insights on this topic.
First off, let's talk about what tolerance means in the context of PS Box Mould. Tolerance refers to the allowable deviation from a specified dimension or value. In the case of PS Box Mould, it's all about how much the actual dimensions of the mould can vary from the designed dimensions while still ensuring that the final PS boxes produced meet the required quality standards.
Now, why is tolerance so important? Well, if the tolerance of a PS Box Mould is too large, the PS boxes produced may not fit properly, have uneven walls, or not meet the overall quality requirements. On the other hand, if the tolerance is too tight, it can significantly increase the manufacturing cost and time of the mould. So, finding the right balance is crucial.
There are several factors that can affect the tolerance of a PS Box Mould. One of the main factors is the manufacturing process. Different manufacturing methods, such as CNC machining, EDM (Electrical Discharge Machining), and injection molding, have different levels of precision. For example, CNC machining is known for its high precision and can achieve relatively tight tolerances. However, it also requires more time and expertise. EDM, on the other hand, is suitable for creating complex shapes but may have slightly larger tolerances.
The material used for the mould also plays a role in determining the tolerance. High - quality mould steels, such as P20 and H13, can maintain their shape and dimensions better during the manufacturing and usage process, allowing for more accurate tolerances. Cheaper materials may deform more easily, leading to larger tolerances.
Another important factor is the design of the PS Box Mould. Complex designs with intricate details may be more difficult to manufacture with tight tolerances. For instance, if a PS box has thin walls or small features, it becomes more challenging to control the dimensions precisely.
So, what are the typical tolerance ranges for PS Box Mould? Generally, for most common PS Box Moulds, the linear tolerance can range from ±0.05mm to ±0.2mm. This means that the actual dimension of the mould can deviate from the designed dimension by up to 0.05mm or 0.2mm in either direction. However, for high - precision applications, the tolerance can be as tight as ±0.01mm.
When it comes to surface finish tolerance, the roughness of the mould surface is usually specified. A smoother surface finish is often required for PS boxes that need to have a good appearance or for applications where the box needs to slide easily. The surface roughness tolerance can be in the range of Ra 0.4μm to Ra 1.6μm, where Ra is the arithmetic average roughness.
As a PS Box Mould supplier, we understand the importance of maintaining the right tolerance. We use advanced manufacturing equipment and quality control systems to ensure that our moulds meet the required tolerance standards. Our team of experienced engineers carefully selects the manufacturing process and materials based on the specific requirements of each project.

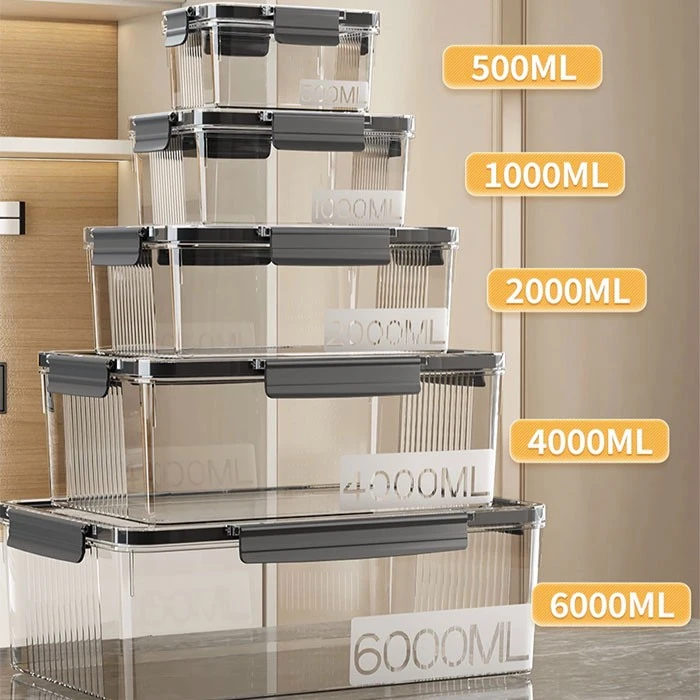

If you're in the market for other types of moulds, we also offer Pp Food Container Mould, Plastic Bowl Mould, and Plastic Food Container Mould. These moulds are also manufactured with high precision and strict tolerance control to ensure the best quality of the final products.
In conclusion, the tolerance of PS Box Mould is a critical aspect that affects the quality and functionality of the PS boxes produced. By understanding the factors that influence tolerance and working with a reliable supplier, you can get a PS Box Mould that meets your specific requirements.
If you're interested in our PS Box Mould or any of our other mould products, don't hesitate to reach out to us for a quote and to start a procurement discussion. We're always happy to help you find the perfect mould solution for your business.
References:
- "Mould Manufacturing Technology" by John Smith
- "Plastic Injection Mould Design" by David Brown
